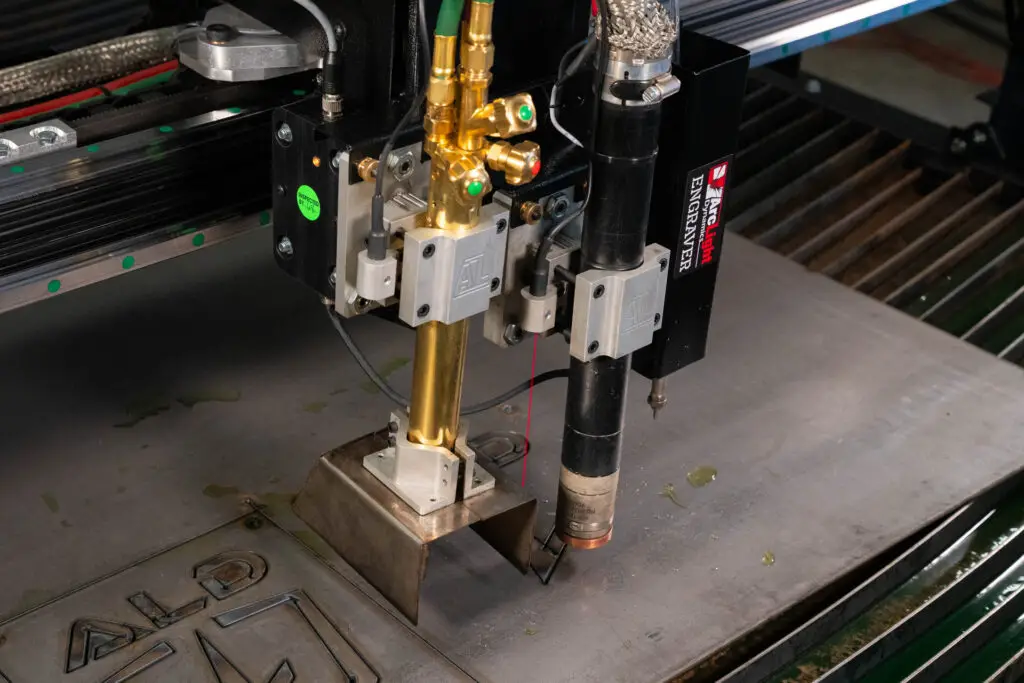

Laser Torch Alignment System

The red dot laser torch alignment tool is used to help quickly and easily accommodate for a non-squared plate.

Select two points and system will auto-calibrate cut path to match plate alignment
Dry run parts with the laser to save material and verify fit
Quickly align Job Zero Points (X/Y Axis)
Bright red visible light for easy location

$1,000.00

Description

Description

Compatible with Arclight Dynamics CNC Plasma Tables that utilize Flashcut CNC software (Arc Max Elite and Arc Max Unlimited CNC Plasma Tables).

Does not work with Command CNC systems (Arc Max and Arc Pro) or Arclight CNC Systems (Arc Max Ultra or Arc Pro Ultra.
