Learn more about the differences of the Arc Max Elite.
- Arc Max Elite
- Arc Max
|Features||Arc Max Elite||Arc Max|
Starting at $24,995
Starting at $18,950
|Controller||Flashcut CNC||Command CNC|
|Automatic Nesting Software|
|Rapids||800 IPM||600 IPM|

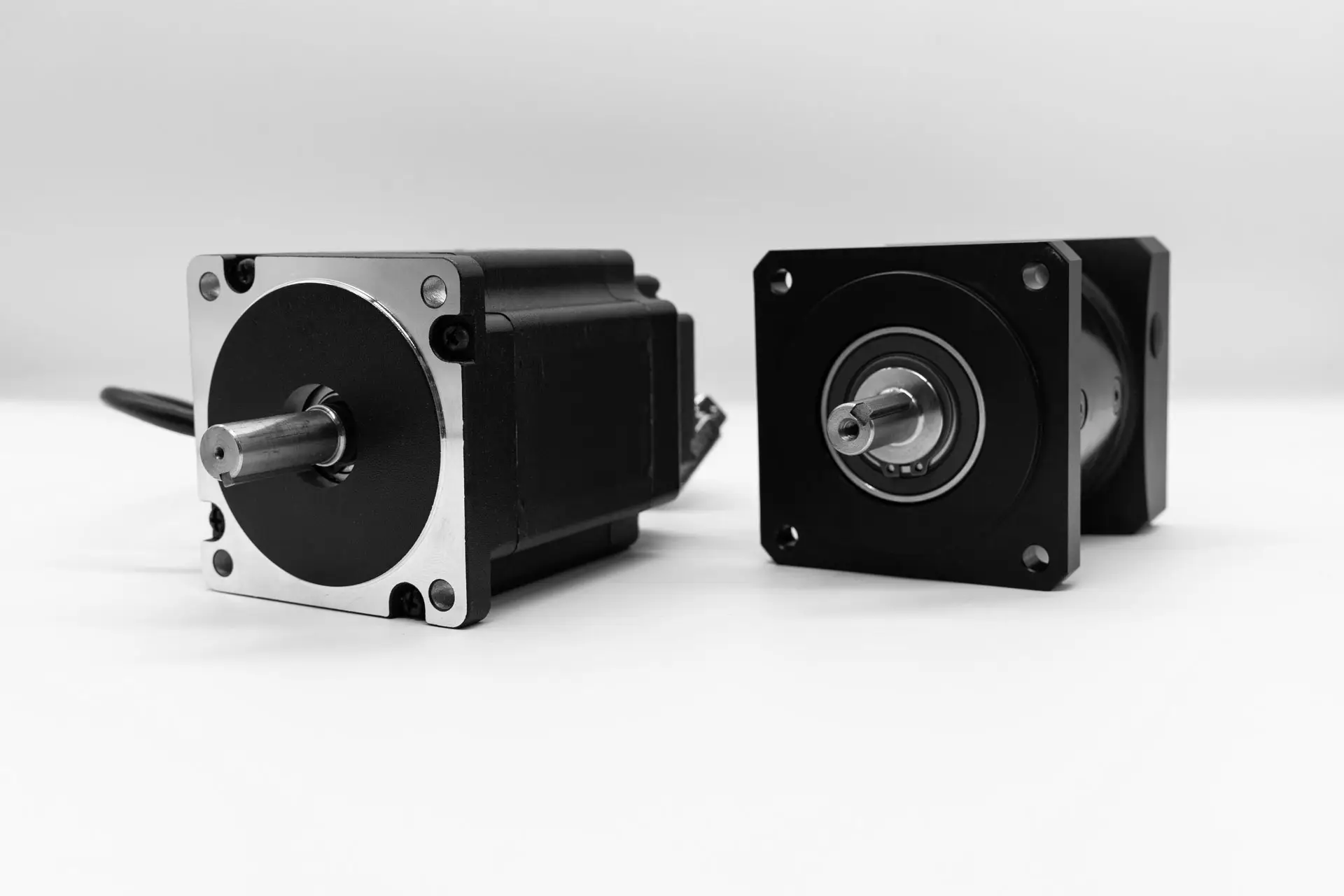

|Motors||Nema 34- 940 oz Stepper||Nema 23- 620 oz Stepper|
|Motor Cabling||XLR Quick Connectors||Hard Wired|
|Collision Detection||System Ready|
|Hole Cutting||Smart 360® Hole Cutting Technology||Customizable Path Rules|
|Easy CAD/Image Import|
|CAD Error Fix Tool|
|CAD Feature Welding Tool|
|CAM 3D Cutting Simulation|
|CNC-THC Performance History Chart|
|CNC Automated Remanant Cut off|
|Ohmic & Mechanical Touch-Off||Both||Mechanical Only|
|CNC Automatic Lead-in on Restart||Shop Arc Max Elite||Shop Arc Max|
Standard Performance Features
Go from Drawing to Toolpath to Cutting all in one.
- Integrated CAD/CAM/CNC Software FlashCut CAD’s intuitive user interface makes it simple to draw and edit any 2D and 2.5D shape
- Simple import of any 2D drawing Convert any bitmap image or photo into a toolpath (outline or centerline)
- Advanced true shape nesting includes nesting of multiple CAD or DXF files and multi-sheet nesting
- Shape library allows you to instantly draw and customize common shapes DXF export for sharing drawings with other CAD programs
- Fix tool finds and corrects CAD mistakes instantly
- Easily bridge internal cut outs such as the center of an “O”
For the Arc Max Elite 4×8 CNC Plasma Table
Watch and learn more about Arclight Dynamics CNC Plasma Cutting Tables and the people that use them.
Learn more about how Classic Car Studios uses their Arclight Dynamics CNC Plasma Table.
See how Barbie the Welder uses her table to grow her business.
Watch and learn more about the Arc Max CNC Plasma Series Tables.
Learn more about the included software and how easy it is to start using your new CNC Plasma Table.
Jim Colt on the Advanced Machine Interface of the Arclight Dynamics CNC plasma tables.
Jim Colt speaks to the Voltage Sampling feature on Arclight Dynamics CNC Plasma Tables.
With our systems you will receive the CNC Table with a mini computer pre-installed with all the software you need to build parts or get started creating designs. All systems have advanced Digital Torch Height Control, Collision Detection, Breakaway Torch Mount and a Water Pan to reduce plate warpage and dust. The software is pre-configured with cut settings for Mild Steel, Aluminum and Stainless Steel. Our standard software has no recurring licenses or fees. Plasma cutters are sold separately so you can use your own or so we can pair a unit up with your needs for cutting capacity. We proudly offer Hypertherm products from a 45xp to the MAXPRO200.
The primary differences between the Arc Max and Arc Pro tables are how they are intended to be used. For most general fab shops, the Arc Pro tables will work accurately and efficiently to produce accurate parts with clean edges, sharp corners, and round holes. The Arc Pro is best suited for shops that rarely see 1/2″ Mild Steel and thicker materials.
If the intent is full production capability and the machine will see heavy plate on a regular basis, then the Arc Max is an excellent choice. the unitized steel frame is robust and well suited for thick materials. The HIWIN Linear guide rails have sealed cassette bearing block housings with grease-able zerk fittings for easy maintenance. The Arc Max tables also come standard with the following:
- Welded, unitized steel frame with 3×3, 3/16″ wall steel tubing
- HIWIN precision linear rails and slides on all axis
- An 8″ extra deep water pan with expanded metal at the 4″ mark to catch small parts for easy access. The extended depth water pan allows for increased run time before the pan needs to be cleaned= less maintenance.
- 8″ raised gantry clearance standard
- Rollers to help loading of large, heavy plate onto the bed of table as a standard feature
- The material support slat height is flush with the table frame
- Frame skirting is a standard Feature
- Twin ball valves for easy draining and filling of water pan
- 3 Emergency stop buttons
The Arc Max tables run a different controller that use CAD, SheetCAM and CommandCNC. The Elite tables run the FlashCut Software and Controller and have upgraded NEMA 34 Motors. The Unlimited tables also run the FlashCut Software and Controller and have upgraded NEMA 34 Motors, a reinforced and gusseted steel frame suitable for up to 3” Thick Mild Steel and have upgraded 4.5” deep slats to accommodate either MAXPRO 200 or Oxy-Fuel Cutting Processes.
The Arc Pro tables run a different controller that use CAD, SheetCAM and CommandCNC. The Elite tables run the FlashCut Software and Controller and have upgraded NEMA 34 Motors.
Your CNC plasma can cut most metals, including steel, brass, copper, and aluminum. The CNC Router can cut wood, acrylic, aluminum, brass, plastic, foam, composites, phenolic and other solid materials.
All tables come with lifetime support that follows the table to any owner. Our staff of expert full time technical support agents are available Monday-Friday 7:30 am to 4:00 pm PST. They can be reached via email or phone. Occasionally you will have to leave a message, but they return all calls in the order received as we see every call through to resolution. Our support team also monitors our table owners group on Facebook Arclight Dynamics Users Support Forum. This is a gated, owners-only group that is an invaluable resource for new and experienced operators.
Email: [email protected] | Phone: 866-222-2154 (option 2).
We offer several options for learning the machine. Every table comes with a comprehensive operation manual that walks you through setup, maintenance, operation and every accessory. In addition to this manual, there are extensive video training modules on every table and on our website. Also, we offer lifetime technical support via phone, email, video conference and remote desktop. Additional training options include in house and on-site training. There may be an additional cost for these services.
Most users are able to get started cutting right away with basic preparations including air, power and water. It is a simple three step process: CAD, CAM and Cut. We will provide you with training resources, references and software ahead of your tables delivery. Also, live technical support is available to help you get up and running as fast as possible.
Our CNC Systems shipped 98% assembled with all the components loaded and secured to the top of the table. We ship partial load LTL, fully insured with a driver no-touch policy. The system is not trans-loaded, moved or otherwise disturbed until it arrives at your location. Offloading will require a forklift or similar machine with extensions to facilitate front or side offload. In some cases where a forklift is not available a tilt-bed roll-off style tow truck can be hired to assist with offloading. All tables are equipped with caster wheels that can be lowered to aid with rolling the table off the truck.
Limited Lifetime Warranty on the table, 3-Year Comprehensive Warranty on the Controller and Motors. 2-Year for other electronics and a 1-Year Computer Warranty.
You have the option of purchasing a 1 or 2 year Extended Warranty for any Arclight Dynamics CNC Plasma Table.
All tables ship fully tested and 98% assembled, making it easy to cut your first masterpiece. An initial training session and lifetime support are included with every table.
All Arclight CNC Plasma Tables are designed, engineered, and made in America.
Buy with confidence. Our technical support team is only a call away to train, assist and optimize all aspects of your system. We are with you every step of the way.
Replacement parts are in stock and ready to ship within 24 hours.
