EZ Sander Widebelt Metal Finishing Machine

Deburring, Grinding, Slag/Dross Removal, and Straight Grain Finishing.

The Metalworking Widebelt EZ Sander is a cost-effective way to finally upgrade your deburring and finishing operations, moving away from time-consuming hand grinding. With just a quick change of the abrasive belt, this compact machine can remove slag/dross, grind vertical burrs, or straight grain finishing (including some mill scale removal).

The EZ Sander was developed to fit the needs of both small metalworking shops, as well as, large production facilities looking for an easy way to run small projects “off-line” from their main production flow. With a small footprint and the ability to mount on casters, this machine is portable enough to fit almost any shop. Don’t let the small size fool you, the EZ Sander is loaded with features and is heavy-duty enough to provide years of dependable, consistent, labor saving production.

In Stock and Ready to Ship Today.

$18,750.00

Product total
Options total
Grand total
Pay a deposit of $500.00 per item

Grand total: See in cart

Description

EZ SANDER MACHINE FEATURES

  • 36″ wide part capacity
  • 37″ x 60″ abrasive belts
  • Variable speed conveyor at 5-25 fpm
  • 5″ bed opening with motorized lift
  • Digital thickness readout for conveyor height
  • Control panel with motor load meter, hour meter, and digital readout
  • Electronic abrasive belt tracking
  • Pneumatic abrasive tensioning
  • Air operated disc brake
  • 6″ diameter cam adjustable contact drum with dial indicator
  • Heavy-duty welded frame
  • Casters for portability

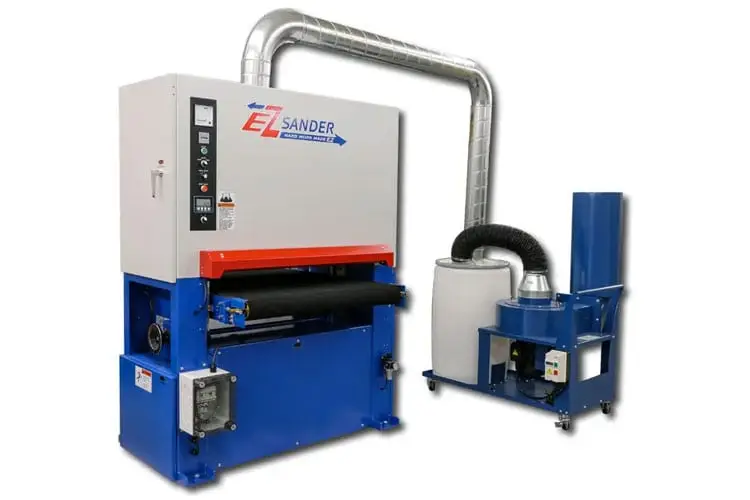

  • Optional portable 5 HP wet dust collector

EZ SANDER MACHINE SPECIFICATIONS

  • Abrasive Belt Size 37″ x 60″
  • Motor Size 10 HP or 15 HP
  • Number of Heads 1
  • Conveyor Opening 0-5″
  • Floor to Table Height 31-3/8″ to 37-3/8″
  • Conveyor Drive Motor 1 HP
  • Feed Speed 5-25 FPM
  • Shipping Weight 2,150 Lbs.

    PART PROCESSING LIMITATIONS

  • Max Width 37″
  • Max Thickness 5″
  • Min. Length* 10″
    * Minimum part length is approximate and can vary by application or optional features. Please contact us to discuss your specific application needs.

Learn More

Mill Scale and Plasma Slag Removal of Metal Art Parts Using an EZSander.

Slag Removal from a Plasma Cut Metal Art.
