Description

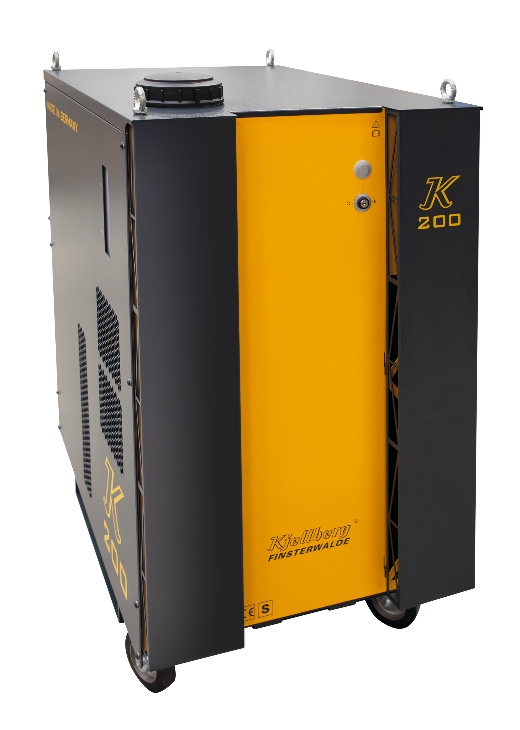

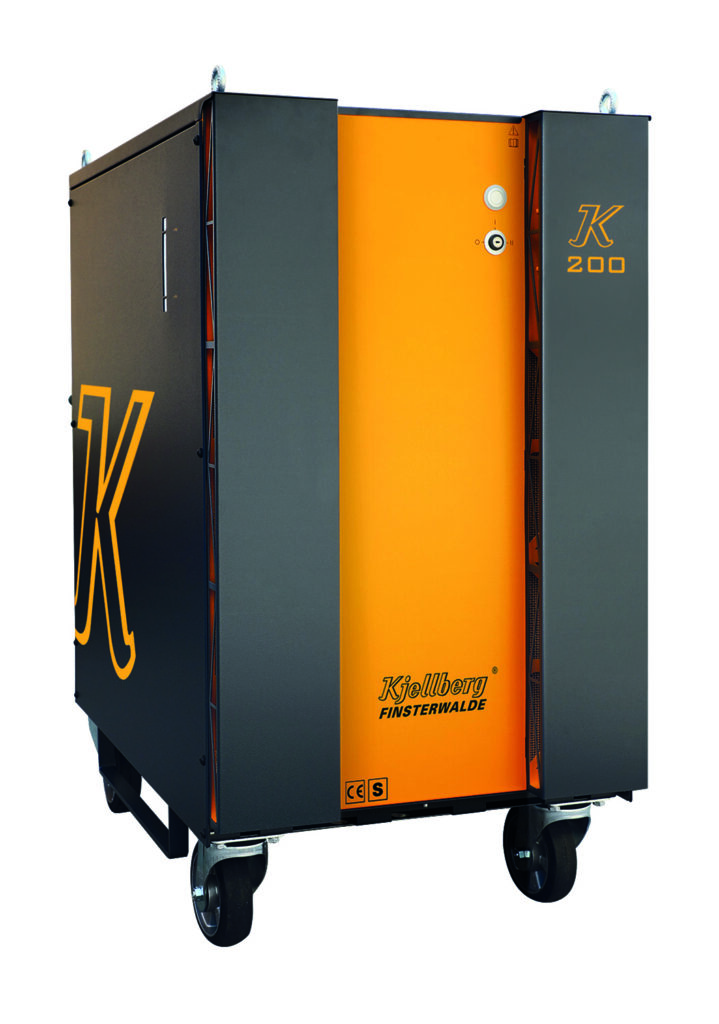

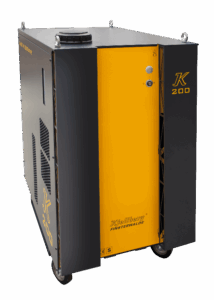

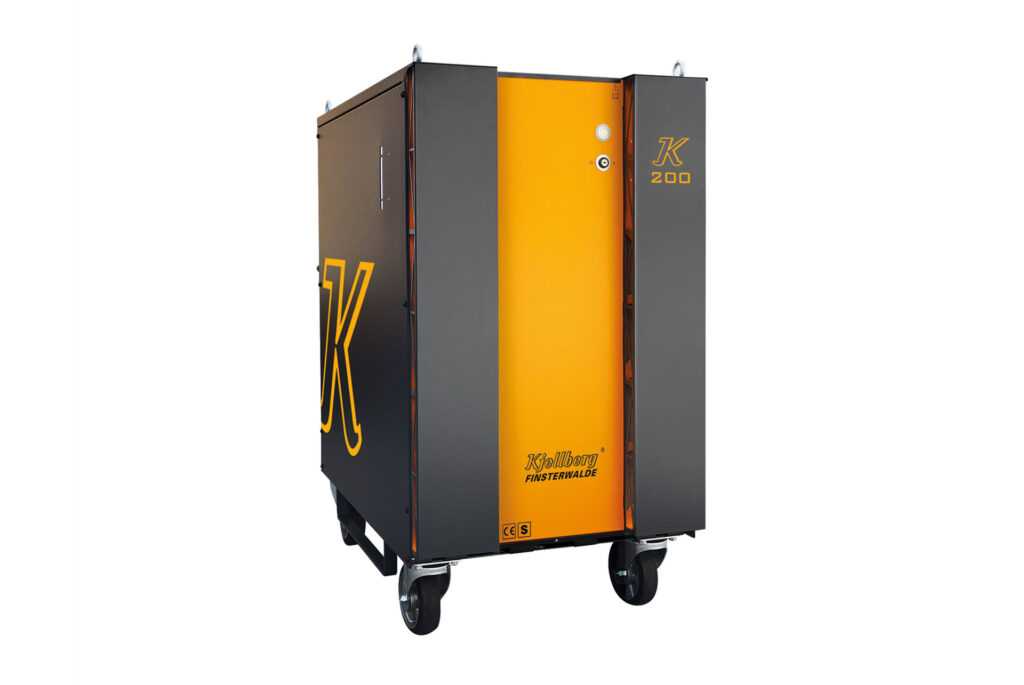

Benefits of the Kjellberg K 200
The K 200 offers exactly what plasma cutting is all about: optimum and reliable plasma cutting quality with easy operation at lowest cost.
- Optimum and reliable cutting results
- Low investment and operating costs
- Simple installation, control and maintenance
-
K 200 480V/60Hz
-
Workpiece cable with plug, 50qmm 10m
-
Gas hose O2, G1/4″ 6m free of oil
-
Gas hose N2/Air, G1/4″ 6m
-
Shaft K-Torch QC 15m
-
K-Torch QC Wechselkopf
-
contact ring for protection cap ø50
-
ohmic contact sensor/ IHS /3m cable
-
Control cable PA -ohmic contact 8pole 15m
Downloads
Shipping
The K200 is in stock and will ship separately from your Arclight Dynamics CNC Plasma Table.
Learn More
Watch and learn more about the Kjellberg K 200.
Learn more about Kjellberg Finsterwalde.
Click below to learn more about specifications and operating information.
Cutting current (100 % DC1) | 60 – 200 A |
|---|---|
Marking current (100 % DC1) | 35 A |
Cutting range | |
Mild steel Maximum Piercing | O2 /Air | Air /Air 60 mm | 50 mm 35 mm | 35 mm |
Stainless steel Maximum Piercing | N2 / N2 | Air/Air 40 mm | 50 mm 25 mm | 30 mm |
Aluminum Maximum Piercing | N2 / N2 | Air/Air 40 mm | 50 mm 20 mm | 30 mm |
Plasma gases Swirl gases Marking gas | O2, N2, Air N2, Air Air |
Dimensions (LxWxH) Mass Fuse, slow Mains voltage2 Max. connected load Protection class | 1078 x 684 x 1231 mm 351 kg 80 A 3x 400 V 50 Hz 52 kVA IP 21S |
Extract Cutting speeds |
|
Mild steel 10 mm O2 Cutting 130 A Air Cutting 130 A Mild steel 20 mm O2 Cutting 200 A Air Cutting 200 A Stainless steel 10 mm N2 Cutting 130 A Air Cutting 130 A Stainless steel 20 mm N2 Cutting 200 A Air Cutting 200 A Aluminium 12 mm N2 Cutting 130 A Air Cutting 130 A |
2900 mm/min 2700 mm/min
1750 mm/min 1500 mm/min
1900 mm/min 1800 mm/min
1200 mm/min 1500 mm/min
1800 mm/min 1800 mm/min |
1 Ambient temperature 40 °C
2 Other voltages and frequencies on request
