Suburban Manufacturing Tsunami Pure 5 Air Filter

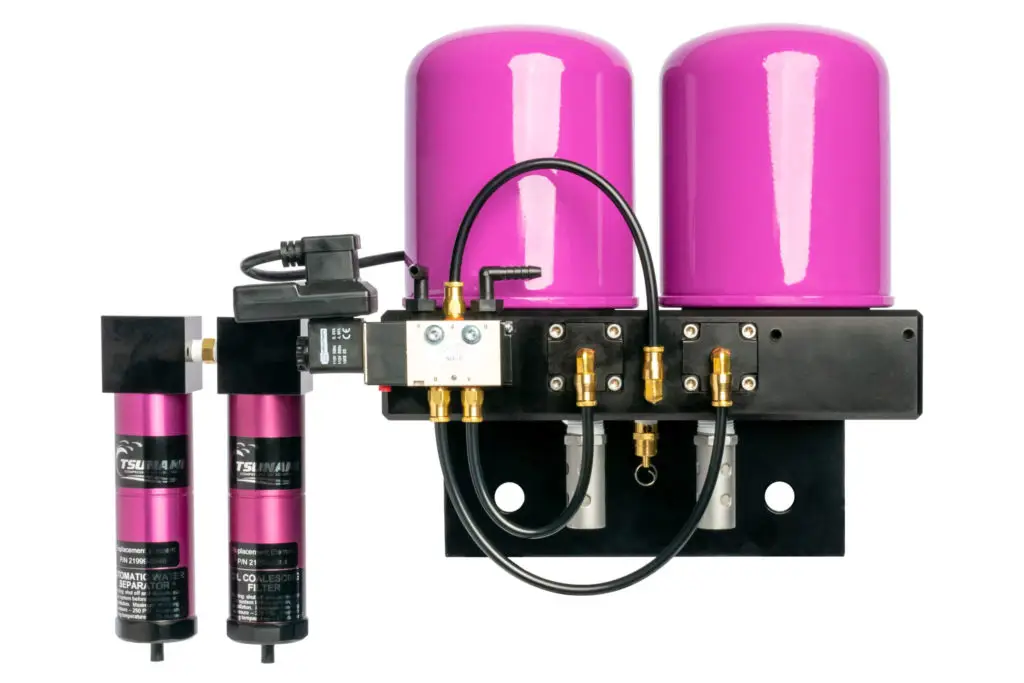

Tsunami Pure 5 Series 5-HP 1/2" Regenerative Air Dryer (17 CFM)

Air filtration single most effective step that you can take to improve cut quality, extend consumable life and protect your plasma cutter.

  • Tsunami 17 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil and particulates before entering the dryer
  • Compact, Expandable Design
  • Comes complete with pre-filter, auto drains & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.
  • Stage 1: Water Separator
  • Water and particulates are removed down to 10 micron
  • Stage 2: Oil Coalescing Filter
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Lowest operating cost & maintenance of any dryer
  • 1/4″ Inlet & 1/2″ Outlet NPT Connectors
  • Max inlet pressure is 175 PSI; Min 80 PSI
  • Requires connection to 120-volt outlet
  • Handles up to 150°F inlet air temperature
  • Float Drain
  • Automatically discharges drainage
  • Float type drain valve drastically reduces maintenance


Product total
Options total
Grand total


Whether supplying air to your entire facility or isolating a specific tool or application, Ultra Series regenerative drying systems provide world class Tsunami clean air technology at an affordable price. Complete with pre-filters, programmable logic controller (PLC), and automatic drains.

Learn More

Watch and learn how regenerative dryers work.

Additional information

Weight 52 lbs
Dimensions 24 × 17 × 15 in
