Emax 7.5 HP Silent Air two-stage 80-gallon air compressor for an Arclight CNC plasma table

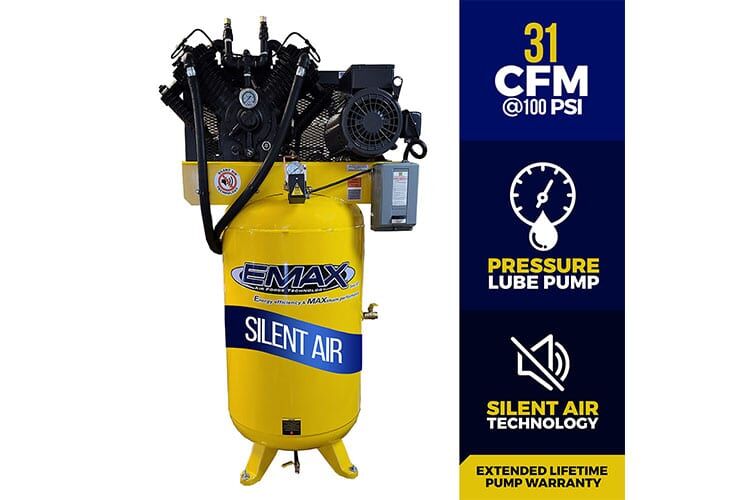

Emax 7.5 HP Silent Air Compressor, 80 Gallon, Two-Stage, Single Phase (ES07V080V1)

A 7.5 HP, two-stage Emax piston compressor on an 80-gallon vertical tank. It delivers 31 CFM at 100 PSI on 230V single-phase power, with headroom for production plasma cutting and the rest of the shop, and the Silent Air intake silencer to keep noise down.

  • 31 CFM at 100 PSI, 175 PSI max
  • Two-stage, four-cylinder, pressure-lubricated cast iron pump
  • 80-gallon vertical ASME tank
  • 230V single phase, 50 A breaker
  • Model ES07V080V1

Ships by freight. Freight is quoted separately.

$4,850.00

Product total
Options total
Grand total

Description

A 7.5 HP compressor with headroom for production plasma cutting

The Emax ES07V080V1 is a 7.5 HP, two-stage piston air compressor on an 80-gallon vertical tank. It delivers 31 CFM at 100 PSI, about double Arclight’s 15 CFM at 90 PSI baseline for a single-cutter CNC plasma table. That headroom means the pump cycles instead of running flat out on long nests, and there is air left for tools elsewhere in the shop. It runs on 230V single-phase power.

The Silent Air intake silencer routes intake air through baffles and pre-filter media. That cuts intake noise, which is most of what you hear from a piston compressor, and adds a stage of intake filtration.

Specifications

ModelEmax ES07V080V1 (E350 Silent Air series)
Motor7.5 HP, 230V single phase, low-speed industrial motor
Air delivery31 CFM at 100 PSI
Maximum pressure175 PSI
PumpTwo-stage, four-cylinder, pressure-lubricated, solid cast iron
Tank80 gallon, vertical, ASME; 3/4 in. outlet
ElectricalAbout 32 running amps; Emax recommends a 50 A breaker
FootprintAbout 38 x 42 x 72 in.; about 743 lb
IncludedSilent Air intake silencer, vibration isolator pads

Figures are Emax’s published specifications. Have your electrician confirm wiring and breaker size against the data plate on the unit.

When to choose 7.5 HP over 5 HP

Choose the 7.5 HP if you run a higher-amperage plasma cutter, cut for most of a shift, or feed air tools, a blast cabinet or a paint booth from the same compressor. For a lighter-duty single-cutter table, the 5 HP Silent Air meets the baseline for less. If the whole shop runs on this compressor, look at the 10 HP.

Size the compressor to the plasma cutter, not the table. Our air compressor sizing guide walks through CFM, tank size and drying.

Dry the air before it reaches the torch

A compressor makes volume. It does not make dry air. Moisture and oil in the line are the fastest way to burn through consumables and rough up cut edges. Add a refrigerated dryer after the tank and an air filtration unit at the table. If you want it as one matched system, the 7.5 HP package pairs this size of compressor with a radiator aftercooler and a 58 CFM dryer.

Ordering and freight

Order it here or add it to your table quote and we’ll size the whole air system to your plasma cutter. Compressors ship by freight, and freight is quoted separately from the price shown. Get a quote.

Common questions

What electrical service does the Emax 7.5 HP need?

230V single phase on a dedicated circuit. Emax lists about 32 running amps and recommends a 50 A breaker.

Is 7.5 HP more compressor than a plasma table needs?

It is more than the 15 CFM baseline, on purpose. The extra output keeps pressure steady through long cuts and leaves air for the rest of the shop.

Does it include an air dryer?

No. This is the compressor only. Add a dryer and filtration, or order the 7.5 HP package with aftercooler and 58 CFM dryer.

Is there a three-phase version?

This model is single phase. The 7.5 HP dryer packages are available in 208/230V and 460V three phase.

Learn More

Watch and learn more about the Emax Silent Series Air Compressors.

Watch Emax Air Compressors in this documentary.
