Emax 5 HP two-stage 80-gallon air compressor for an Arclight CNC plasma table

Emax 5 HP Silent Air Compressor, 80 Gallon, Two-Stage, Single Phase (ES05V080I1)

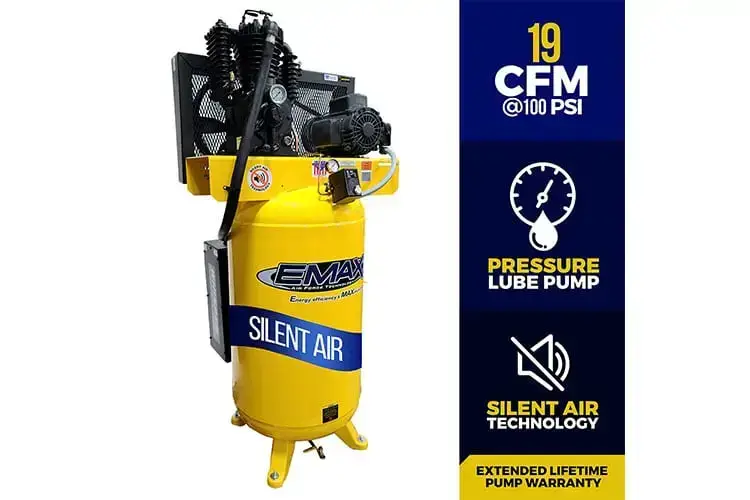

A 5 HP, two-stage Emax piston compressor on an 80-gallon vertical tank. It delivers 19 CFM at 100 PSI on 230V single-phase power, enough air for most single-cutter CNC plasma tables, with the Silent Air intake silencer to keep shop noise down.

  • 19 CFM at 100 PSI, 175 PSI max
  • Two-stage, pressure-lubricated cast iron pump
  • 80-gallon vertical ASME tank
  • 230V single phase, 40 A breaker
  • Model ES05V080I1

Ships by freight. Freight is quoted separately.

$4,205.00

Product total
Options total
Grand total

Description

A 5 HP shop compressor sized for a CNC plasma table

The Emax ES05V080I1 is a 5 HP, two-stage piston air compressor on an 80-gallon vertical tank. It delivers 19 CFM at 100 PSI, which clears Arclight’s baseline of at least 15 CFM at 90 PSI for a single-cutter CNC plasma table. It runs on 230V single-phase power, so it fits most small shops and garages without three-phase service.

The Silent Air intake silencer routes intake air through baffles and pre-filter media. That cuts intake noise, which is most of what you hear from a piston compressor, and adds a stage of intake filtration.

Specifications

ModelEmax ES05V080I1 (E350 Silent Air series)
Motor5 HP, 230V single phase, low-speed industrial motor
Air delivery19 CFM at 100 PSI; 17 CFM at 175 PSI
Maximum pressure175 PSI
PumpTwo-stage, pressure-lubricated, solid cast iron
Tank80 gallon, vertical, ASME; 3/4 in. outlet
ElectricalAbout 26.5 full-load amps; Emax recommends a 40 A breaker
FootprintAbout 42 x 34 x 75 in.; about 620 lb
IncludedSilent Air intake silencer, vibration isolator pads

Figures are Emax’s published specifications. Have your electrician confirm wiring and breaker size against the data plate on the unit.

Is 5 HP enough for my plasma table?

For most single-cutter tables, yes. A 5 HP two-stage compressor on a 60 to 80 gallon tank is the size Arclight recommends as the starting point, and this one has headroom over the 15 CFM baseline. Step up to the 7.5 HP or 10 HP if you run a high-amperage plasma cutter, cut for most of a shift, or share the compressor with air tools, a blast cabinet or paint.

Size the compressor to the plasma cutter, not the table. Our air compressor sizing guide walks through CFM, tank size and drying.

Dry the air before it reaches the torch

A compressor makes volume. It does not make dry air. Moisture and oil in the line are the fastest way to burn through consumables and rough up cut edges. Pair this compressor with the Emax 30 CFM refrigerated air dryer and an air filtration unit at the table. If you want the compressor, aftercooler and dryer as one matched system, see the 7.5 HP packages in air compressors and dryers.

Ordering and freight

Order it here or add it to your table quote and we’ll size the whole air system to your plasma cutter. Compressors ship by freight, and freight is quoted separately from the price shown. Get a quote.

Common questions

What electrical service does the Emax 5 HP need?

230V single phase on a dedicated circuit. Emax lists about 26.5 full-load amps and recommends a 40 A breaker.

Will a 5 HP compressor keep up with a CNC plasma table?

Yes for most single-cutter tables. It delivers 19 CFM at 100 PSI against a 15 CFM at 90 PSI baseline. High-amperage cutters and all-day production are better served by 7.5 or 10 HP.

Do I still need an air dryer?

Yes. Compressed air carries water, and plasma consumables do not tolerate it. Add a refrigerated dryer after the tank and filtration at the machine.

Does the compressor come with the plasma table?

No. It is sold separately so you can size it to your cutter and your shop, or use a compressor you already own if it meets the air requirement.

Learn More

Watch and learn more about the Emax Silent Series Air Compressors.

Watch Emax Air Compressors in this documentary.
