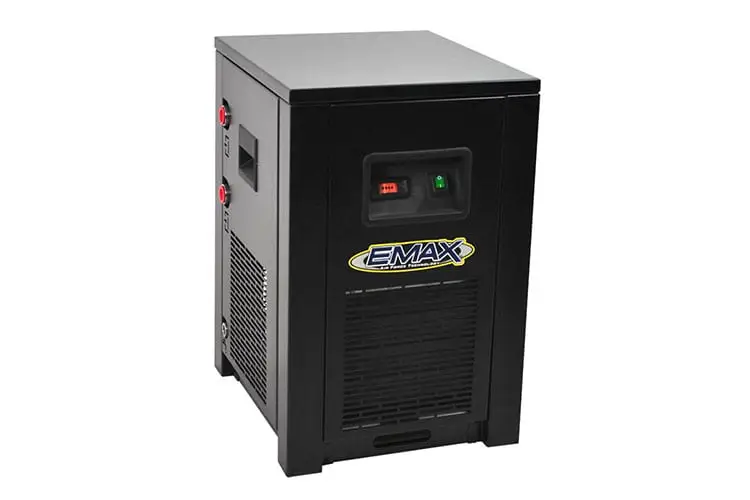

Emax 30 CFM refrigerated air dryer for a CNC plasma table air system

Emax 30 CFM Refrigerated Air Dryer, 115V (EDRCF1150030)

A 30 CFM refrigerated air dryer with a built-in coalescing filter and automatic drain. It takes the water, oil and dirt out of compressed air before it reaches your plasma cutter, which is the single most effective step for longer consumable life and cleaner cuts.

  • 30 CFM, rated for 5 to 7.5 HP compressors
  • 37 to 50°F dew point
  • Built-in 0.01 micron coalescing filter and auto drain
  • Plugs into a standard 115/120V outlet
  • Model EDRCF1150030

$2,576.00

Description

Dry air is what keeps plasma consumables alive

The Emax EDRCF1150030 is a 30 CFM refrigerated air dryer. It chills compressed air so the water in it condenses, then drains that water away along with the oil and dirt it carries, and passes the air through a built-in coalescing filter. What reaches your plasma cutter is cool, dry and clean. Emax rates it for 5 to 7.5 HP compressors, which covers the air system on most single-cutter CNC plasma tables.

Wet air is the most common cause of short consumable life and rough, dross-heavy cuts. A dryer after the tank is the fix, and it costs less than the consumables it saves.

Specifications

ModelEmax EDRCF1150030
TypeRefrigerated air dryer with built-in coalescing filter and automatic drain
Capacity30 CFM
Dew point37 to 50°F
FiltrationRemoves solid particles down to 0.01 micron
Power115/120V single phase, about 4 amps; plugs into a standard outlet
Connections1/2 in. inlet and outlet
RefrigerantR-134a
SizeAbout 22 x 13 x 23 in.; about 71 lb
Also on boardRefrigerant pressure gauge, stainless steel heat exchanger, outlet air baffle heater, steel cabinet

Figures are Emax’s published specifications.

Where it goes in the air line

Compressor, then tank, then dryer, then filtration at the machine. Let the tank do the first round of cooling and water drop-out, and put the dryer downstream of it. Finish with an air filtration unit at the plasma table to catch anything the air line adds on the way.

Which compressor does it pair with?

It is the right size for the Emax 5 HP Silent Air (19 CFM) and works with the 7.5 HP Silent Air (31 CFM). It also works with a compressor you already own, as long as the compressor’s output is at or under 30 CFM. For the 10 HP, or if you want the compressor, aftercooler and dryer matched from the factory, see the 7.5 HP package with 58 CFM dryer.

Our air compressor sizing guide covers the whole air system.

Ordering

Order it here or add it to your table quote. Get a quote.

Common questions

Do I need an air dryer for a plasma cutter?

Yes. Compressed air carries water, and water in the torch shortens consumable life and roughens the cut. A refrigerated dryer is the standard fix for a shop air system.

Refrigerated or desiccant dryer?

A refrigerated dryer handles most shops and needs almost no upkeep. A desiccant dryer reaches a lower dew point for very humid climates or the most demanding cut quality, at the cost of replacing or regenerating the desiccant.

What power does the dryer need?

A standard 115/120V outlet. It draws about 4 amps.

Is 30 CFM enough?

The dryer should be rated at or above your compressor’s output. 30 CFM covers a 5 HP compressor with room to spare and a 7.5 HP compressor at Emax’s rating.
