The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.
Our Industrial Series offers all the same quality and durability as our Plus series without all the extra cost of added features. We offer this series so that anyone can afford to have an EMAX Compressor.

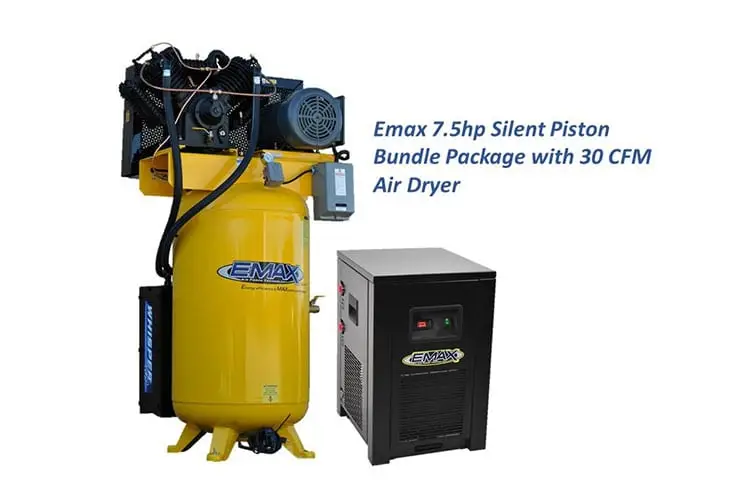

This Bundle has our Emax Industrial Plus 7.5 HP 2 Stage Inline 3 Phase Vertical 80 Gallon Piston Air Compressor is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. We have paired it with our environmentally friendly 30CFM Refrigerated air dryer.
Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
At the core of our Emax compressors is our pump. These pumps are SUPER quiet in operation and built to last! We start with a solid cast iron crankcase. Unlike some competitor’s aluminum body crankcases – our solid cast iron crankcase will ensure stable crankshaft alignment and will handle more work load under heavy load conditions.
Our pump also features a precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth & efficient operation with less drag and less energy use.
Our pumps also feature several other key components that ensure durability and performance.
- All steel connecting rods with replaceable rod bearing inserts. This allows our rods to be rebuilt! 99% of our competitors now use “throw-away” aluminum connecting rods in their pumps that have no re-build capability.
- Removable 100% cast iron cylinders. These solid cast iron cylinders are more stable under heavy workloads and do not warp from heat. Most of our competitors are using aluminum cylinders with a pressed-in sleeve that warp under extreme heat. This makes competitor pumps good for about a 40-50% duty cycle – while claiming a 100% duty cycle. Most of the pumps with aluminum cylinders have to be replaced in 1-2 years because they would not hold up under heavy use. Not our Air pumps! Our solid cast iron cylinders can “take the heat” and are designed to perform on heavy load demands.
- All cast iron cylinder heads. Cast iron heads are more durable and dependable for trouble free operation.
- “Disc valve design” intake and exhaust valves. Disc valves have been around for over 100 years and have been proven to perform. Most of our competitors are using “throw-away” reed valves which are not nearly as durable and can’t be re-built. Our disc valves come right out of the top of the cylinder head where they can be serviced in minutes instead of hours like reed valves.
- Top quality compression and oil rings. Our rings ensure performance with low oil carry over (1-5 PPM).
- Precision ground pistons machined to tight tolerances ensures low oil carry over.
- Premium “non-absorbent” gaskets prevent oil seepage from pump.
- All cast iron flywheel with built-in fan. The extra weight of our cast iron flywheel during run cycle gives the pump more “throw” on the compression stroke which will result in fewer loads on the electric motor. Some manufacturers use aluminum flywheels that do not have the proper weight ratio to give the proper throw on the compression stroke when the pump is running.
- Built-in head unloaders. These unloaders are built into the intake valve assembly on the compressor head and perform a valuable function. They unload or open the intake valves under constant run applications. This feature reduces internal pump heat from compression because the intake valve is held open throughout the unloading cycle. This allows fresh air to come into the cylinder chamber. Under the compression stroke, the unloader holds the intake valve open allowing the air to blow back out the intake filter. This fresh air absorbs the heat out of the pump under heavy workloads.
- Built-in inter-cooler and after-coolers. The inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank. Our after-cooler also includes an all copper main feed line from the pump into the tank.
Bottom line … Not only do we have one of the highest quality, most durable compressor pumps in the industry … but we have one of the lowest RPM compressor pumps on the market. That’s the Emax difference! Pump RPM is a very critical factor in both performance and longevity. For that reason, on most of our compressors, we normally “GO BIG” over-sizing our pumps and running them at lower RPMs than most manufacturers. Our bigger, low RPM pump can still yield a high CFM output because both our bore and stroke are bigger. Not only do you get the big CFM output, but the lower RPM operation also reduces friction and heat buildup to extend pump life!
Name Brand Electric Motor
These units have name brand OPD (open drip motors) on them. They carry a 5 Year warranty.
It is most important to note that all of our motors are low RPM motors (1750 rpm) … most manufacturers now use higher RPM motors (3450 rpm). 1750 RPM motors run much cooler than 3450 RPM motors because of the higher torque factor. They also yield low harmonic distortion, provide much higher torque in cold weather starting and require less electricity under start up.
Additional Motor Features:
- Large 1-3/8” output shaft
- High quality ball bearings on the front and rear of the motor shaft
- Large starting and running capacitors
- 15 Service Factor load. This means the motor can be pulled 15% over full load for more break horsepower
- Dynamically balanced armature for low vibration levels
- We at Emax Compressor are always concerned about durability and about your safety in everything we build. Our belt guards are no exception. Built right here in the USA with 13 G steel and premium grade expanded metal, we manufacture our belt guards to be tougher than any you will find in the industry today. For your safety, our belt guards are OSHA approved.
- This unit has a prewired condor starter and pressure switch built into one.
- Actuation-type diaphragm
We at Emax are always concerned about durability and about your safety in everything we build. Along with this philosophy, our air tanks are manufactured right here in the USA and are ASME code compliant in 50 states including California.
- We at Emax Compressor use only top quality components on our compressors. Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower.
- 100% brass check valves with Teflon Seating. All check valves on our compressors are all brass with a Teflon seating. This reduces tank noise when the compressor is running because the Teflon seating is much quieter than other materials and insulates noise when valves are opening and closing during the compression stage.
- 100% brass ASME safety valves. For your safety all safety valves are 100% brass and comply to ASME code. Valves are preset and sealed for correct settings. In the event that your compressor would not turn off, our safety valves open keeping compressor from building too high of a pressure level in the tank. This will help to avoid the potential of tank rupture.
- Top quality plumbing fittings are used to maintain proper sealing when connected to the tank.
- High quality 100% brass ball valves are used for turning air on and off from the air receiver.
- Extended tank water drain pipe plumbed out the front of the unit with a ¼” ball valve handle for easy tank draining. Eliminates the hassle of draining the tank with the typical petcock style drain under the tank.
- Load-less starting. Thanks to built-in head un-loaders built into the intake valve assembly on the compressor head, “load-less” staring is built into this unit. This unloads the pump so the pump will not start under direct head pressure. Without this feature, this will cause motor damage under starting cycle.
Motor Pulley and Belts
- We use taper lock style 2-groove pulleys (not single groove). We also use dual 2-groove, B-Style belts to drive our pumps. This combination is best for a couple of reasons.First, dual belts ensure long belt life and yield low vibration which makes for smoother, more quiet operation because the dual belts do not have to be as tight as with a single belt setup. The tighter the belts (as with a single belt setup) the more load on the compressor pump and motor bearings which decreases the life of both.Second, our taper lock pulleys are much better than a fixed bore pulley with a set screw. A taper lock design will lock the pulley in position to the motor shaft allowing it not to loosen or move on the motor shaft.Our 5-year warranty should not only give you, our customer, complete confidence in our product – but also in our commitment to excellence in quality, support and service.
30CFM REFRIGERATED AIR DRYER
Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.
Keep Water, Oil, And Dirt Out of Your Compressed Air
- Less corrosion of pipes and tools means less downtime
- Avoid splotches & stains on your projects with proper filtration
Energy Efficient Aluminum Refrigerated Air Cooling System
- Designed for maximum performance and efficiency
Rust Free, Stainless Steel Heat Exchanger
- Maximum heat transfer, maximum dryer life & less maintenance
Refrigerated Air Inlet Inner Cooler
- Provides trouble free operation for high temp cooling
- Environmentally friendly R134 Refrigerant
- Adjustable dual timer auto drain
- Aluminum Plate Heat Exchanger with 10 year warranty
- Built in Pre-filter replaceable .005 Micron Filter
- Active Coalescing Filter with replaceable .001 micron filter
Compact And Efficient
- Great for a 5-7.5 HP systems
- 30 CFM
Easy To Install
- Uses 120V single-phase power, no special wiring needed
- Auto Drain System
- Refrigerant Pressure Gauge
- Outlet Air Baffle Heater
Watch and learn more about the Emax Silent Series Air Compressors.
Watch Emax Air Compressors in this documentary.
